| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001 |
| 모델 번호: | SHBH600-4 |
| 최소 주문 수량: | 1 세트 |
| 가격: | US $ 12,300 - 15,300 / Set |
| 포장 세부 사항: | 목재 파렛트 또는 철재 프레임 포장 |
| 배달 시간: | 20 일 이내에 |
| 지불 조건: | T/T 또는 L/C 현장, 웨스턴 유니온 |
| 공급 능력: | 1000은 / 년에서 설정합니다 |
| 이름: | 헤비 듀티 유압 목재 면도기 | 애플리케이션: | 가금류 침구를 위해 나무 부스러기를 만드십시오 |
|---|---|---|---|
| 생산 능력: | 2000kgs/시간 | 원료: | 숲, 로그, 나뭇 가지, 오프컷, 스크랩, 기타 등등 |
| 평범한 머리 수량: | 4 개 PC | 블레이드 양: | 24 PC |
| 총 모터 파워: | 34KW | 전압: | 380V, 3PHASE/50HZ 또는 고객 욕구로서 |
| 보증: | 12 개월 |

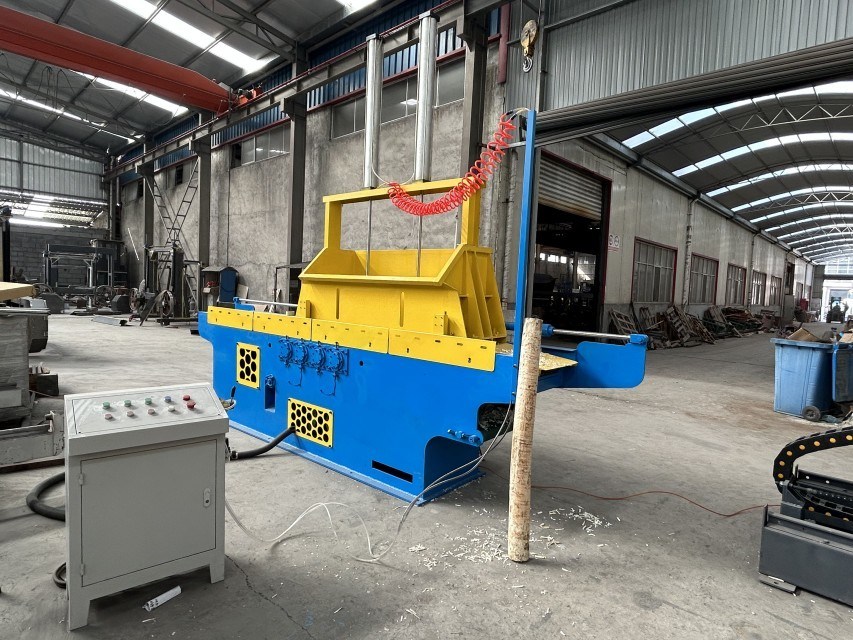

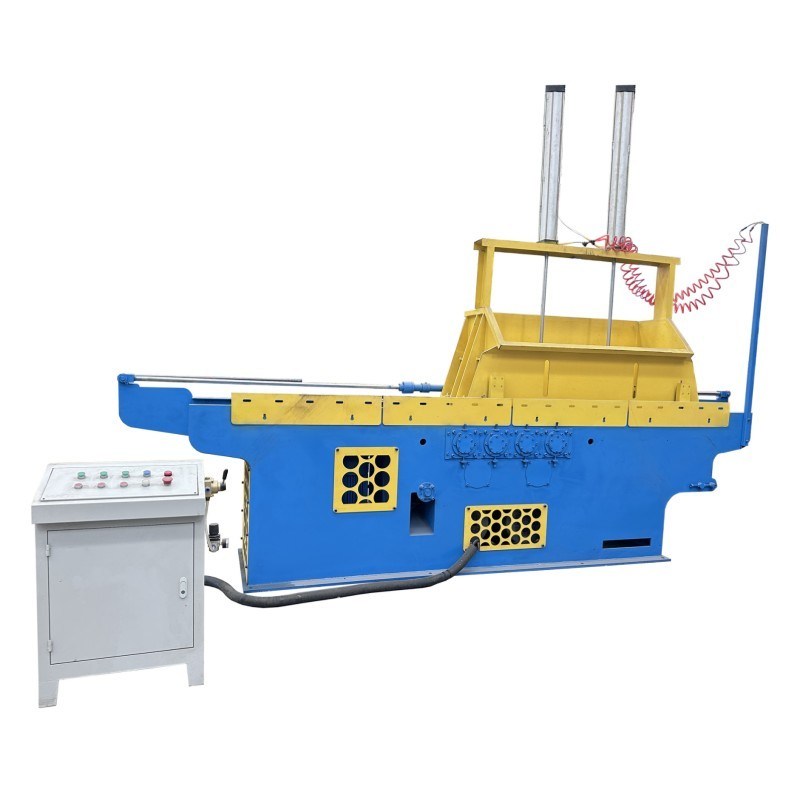

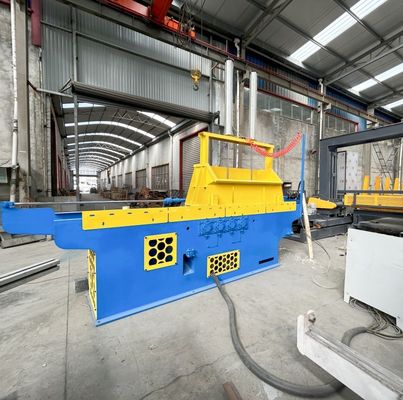

Heavy Duty Hydraulic Wood Shaving Machine
Shavings are produced mainly by cutting wood with rotating knives. It is a patented product of Sawmill-World.After the wood is fed into the machine, the tool on the high-speed rotating knife shaft is in contact with the wood, and the sharp edge of the tool is used to cut the wood into flakes or pieces, which are what we call shavings. Different types of shavings machine, the shape, number and arrangement of the tool may be different, but the basic cutting principle is the same.
Specification
Applications1.animal bedding due to their absorbency and odor control
2.mulch or compost to improve soil moisture and suppress weeds
3.an eco-friendly packing material for fragile items
4.an ingredient in fire starters, and as a natural absorbent for oil spills 5.also serve as pet litter, a filler for some woodworking errors, and a component in making biomass briquettes Key ConfigurationsHigher Efficiency & Power Options
Choose between hydraulic and reducer models, with the reducer version offering 1/3 higher efficiency—saving time and reducing energy costs. Precision Adjustability Easily control wood shaving thickness by adjusting the machine's table—no technical expertise required. |
 |
| Model | SHBH600-4 |
| processing materials max. length | 1400mm |
| processing materials max. width | 600mm |
| planer head | 4 |
| blades | 24pcs |
| rotation speed | 3500r/min |
| bucket length | 1400mm |
| total power | 34KWkw |
| feeding | hydraulic |
| shavings depth | 0.2-1mm |
| capacity | 2000KG/hour |
| machine weight | 3600KG |
Both straight knife and spiral shaft models are available. The spiral shaft supports variable speed via frequency conversion, while the straight knife shaft provides reliable performance at a fixed speed. Both shafts are interchangeable, offering versatility for different wood types and production needs.
Wood Shaving Machine
Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Max Processing wood Length | 800MM | 1400MM | 1400MM |
| Max Processing wood Width | 500MM | 500MM | 500MM |
| Shaft Quantity | 2pcs | 4pcs | 6pcs |
| Blade Quantity | 8pcs | 16pcs | 24pcs |
| Speed (r/min) | 3500 | 3500 | 3500 |
| Bucket Length (mm) | 800 | 1400 | 1400 |
| Total Power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving Depth(mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Production(KG/Hour) | 500 | 1000 | 1500 |
| With pneumatic press cover | |||
Spiral Shaft type Wood Shaving Machine
| Model | SHBH500-2-L | SHBH500-4-L | SHBH500-6-L |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Spiral Shaft quantity | 2pcs | 4pcs | 6pcs |
| Blade (pcs) | 84 x 2 | 84 x 4 | 84 x 6 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| Shavings output | 350KG/H | 700KG/H | 1000KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
