| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001 |
| 모델 번호: | PT-1600, PT-3300, AWPN-1300, 기타 등등 |
| 최소 주문 수량: | 1 세트 팔레트 네일링 머신 |
| 가격: | US $4,200 - 21,500 / Set |
| 포장 세부 사항: | 팔레트 네일링 머신의 컨테이너 부하 |
| 배달 시간: | 20 일 이내에 |
| 지불 조건: | T/T, Western Union |
| 공급 능력: | 팔레트 네일링 머신의 1000 세트 / 년 |
| 이름: | 공기 팔레트 네일링 테이블 | 팔레트 너비: | 800-1600 밀리미터 |
|---|---|---|---|
| 팔레트 길이: | 600-1300mm | 용량: | 240-400 팔레트 /8시간 |
| 작동 압력: | 0.8mpa | 코일 네일 건의 수: | 2P (CN70、CN55) |
| 무게: | 650kgs | 팀원의 수량: | 2, 3, 4, 또는 5 팀원 |
| 공기 클램프: | 블록이 쉽게 중심이 됩니다 | 공압 리프트: | 운영자 상승을 최소화하기 위해 팔레트를 올립니다 |
| 애프터 판매 서비스 제공: | 작동하고 훈련하는 온라인 지원, 무료 예비품 | ||
| 강조하다: | semi-automatic wood pallet machine,pneumatic pallet nailer machine,wood sawdust block pallet maker |
||
Maximize your output and minimize labor costs with our Semi-automatic European Pallet Pneumatic Nailing Table. This isn't just a machine; it's a productivity partner engineered to empower a single operator to build an impressive 240 to 400 pallets within an 8-hour shift. By automating the heaviest and most repetitive tasks, we deliver unparalleled efficiency, dramatic ergonomic improvements, and a rapid return on investment.
A universal pneumatic nailing table, Semi-automatic European Pallet Pneumatic Nailing Table features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line
features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Technical specifications:
| AEPN-1400-1 Semi-automatic European pallet nailing machine | |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 700-1600mm |
| Nailing mode | manual |
| Working mode | PLC touching screen |
| Pallet returning mode | Electrical |
| Air pressure | 0.8MPA |
| Number of beams | 3p (or customized) |
| Number of nail guns | 2P (CN70,CN55) American Stanley staple gun |
| Main motor power | 5kw |
| Wood Pallet Turning Machine | |
| Turning speed | 4-8s/time |
| Wood Pallet Automatic Palletizer | |
| Palletizing capacity | 20pcs pallets |

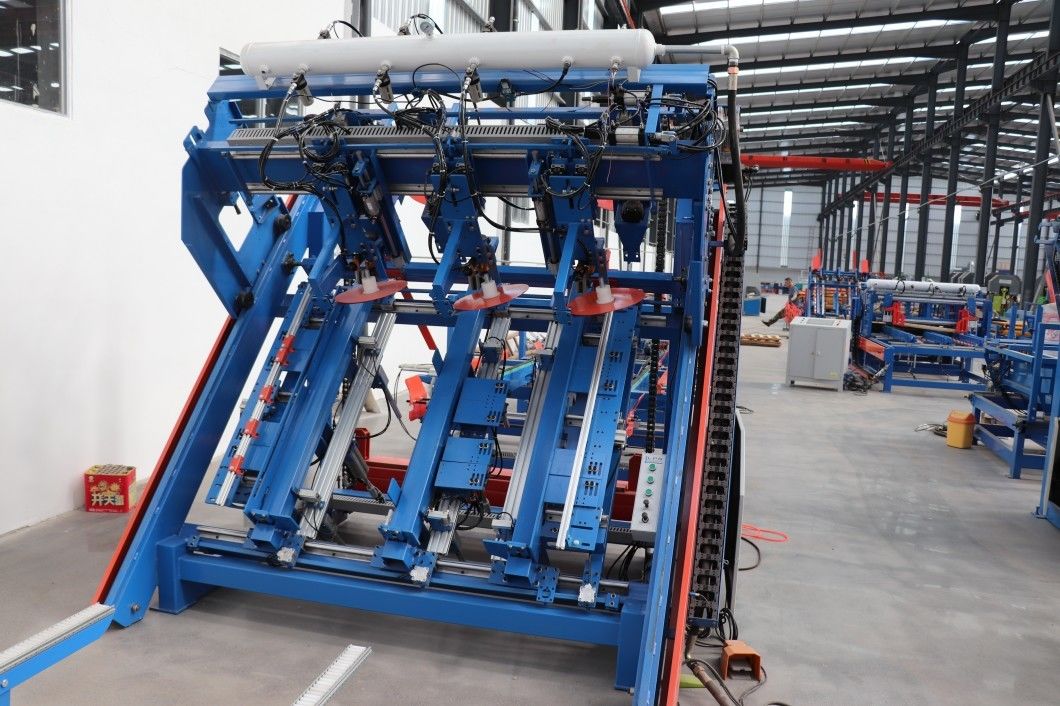

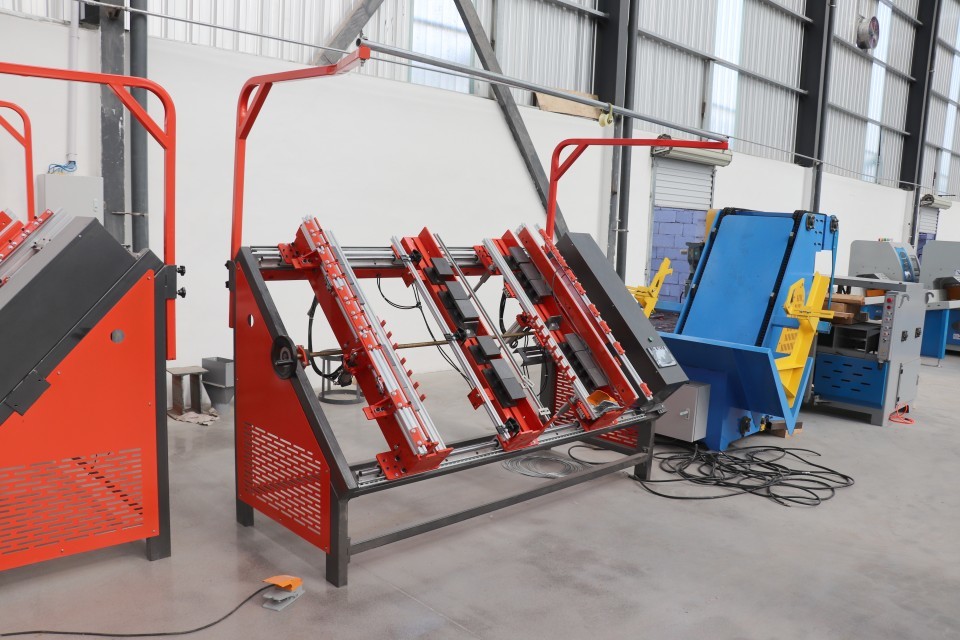

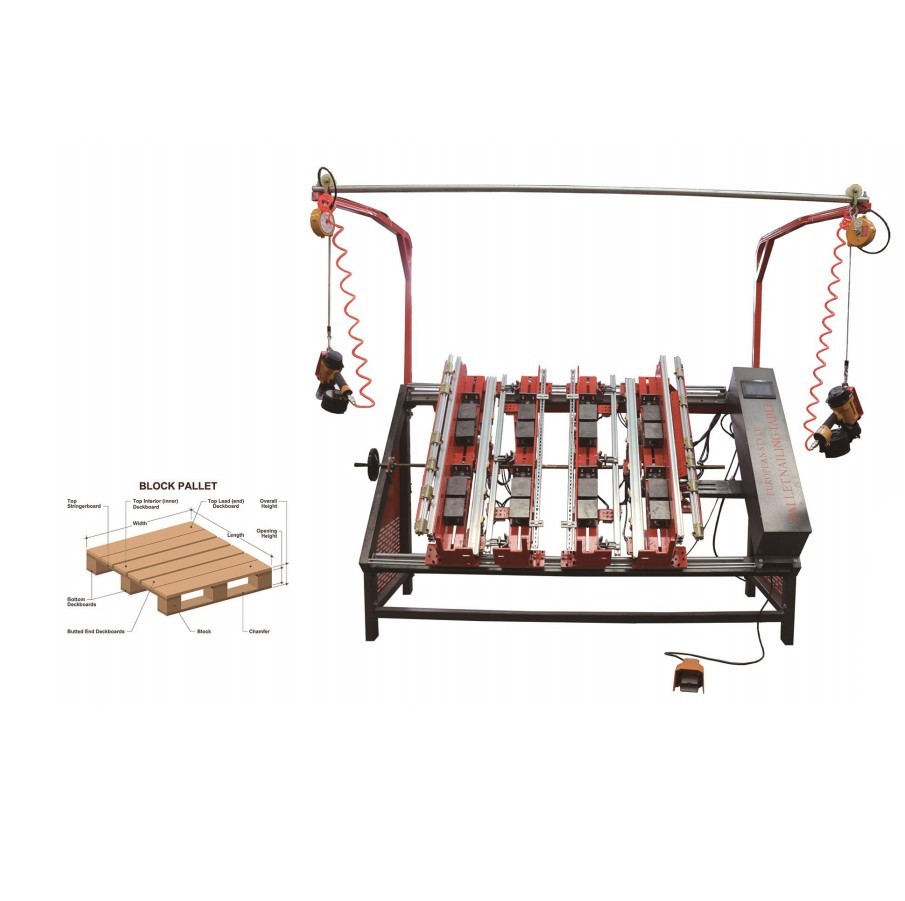

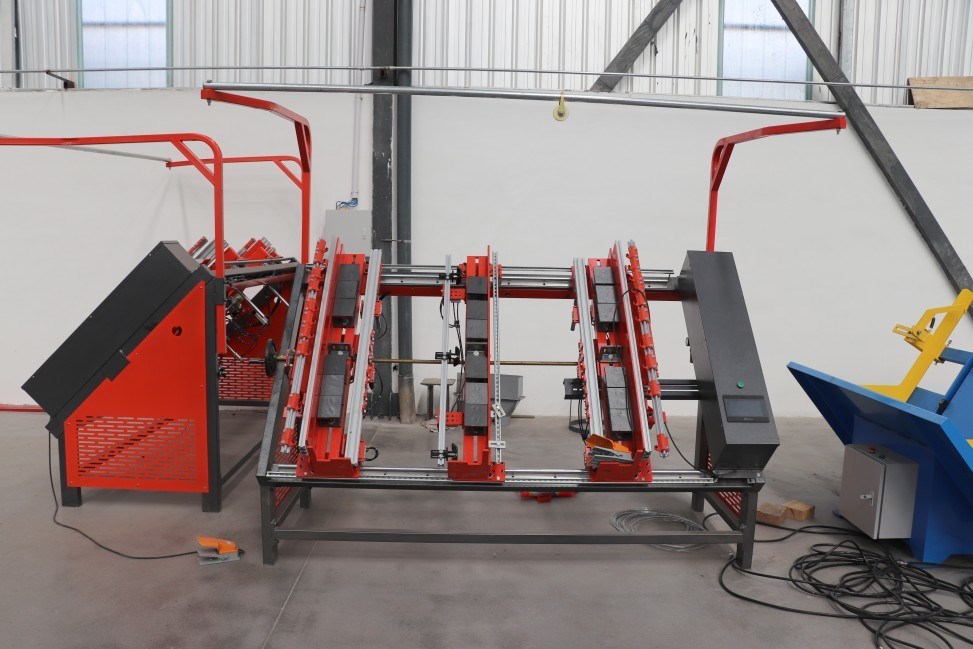

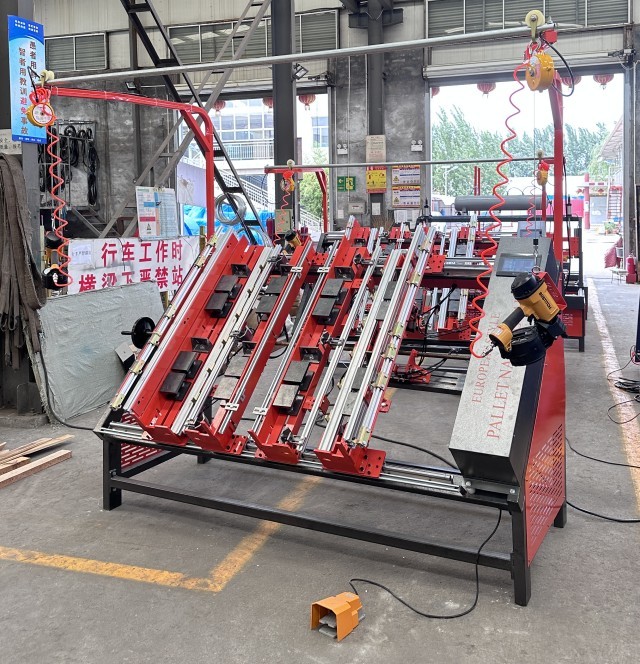

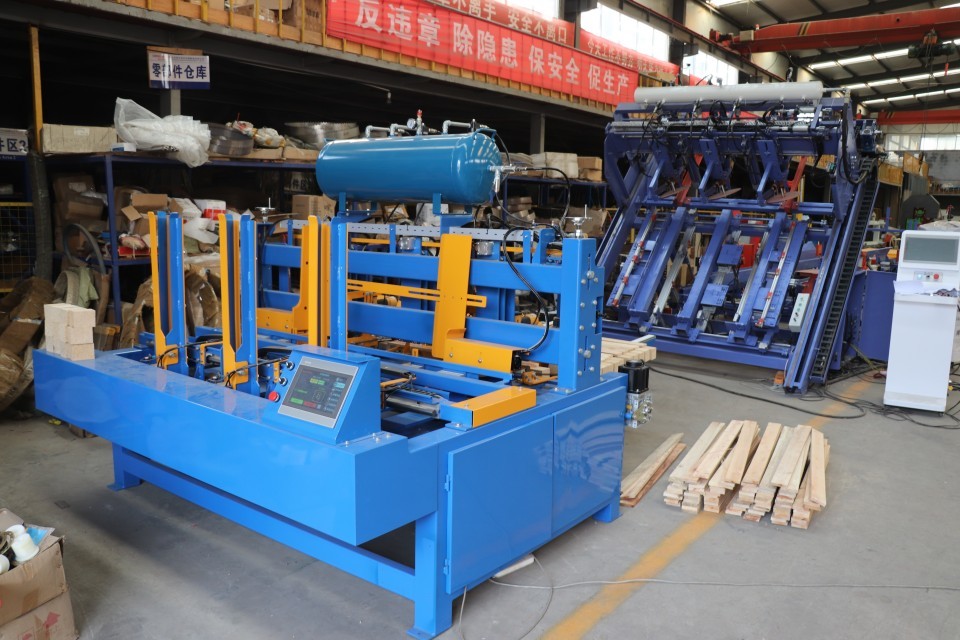

Detailed Images
Built for Reliability, Backed by Trustworthy Support
We engineer our equipment for long-term, dependable performance. This universal pneumatic nailing table is supported by a robust warranty and accessible customer service, ensuring your investment is protected and your production line remains operational.
Ready to revolutionize your pallet manufacturing efficiency and empower your workforce?
Contact us today to request a personalized demonstration and a detailed quote. Let us show you how our solution can directly address your production challenges.
