| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001 |
| 모델 번호: | CH-3, CH-7.5,BD-7.5,JL-6000, MC-64 등 |
| 최소 주문 수량: | 1세트 |
| 가격: | US$255 -US$2900 Per Set Machine |
| 포장 세부 사항: | 루오 포장 또는 수출 팔레트 포장 |
| 배달 시간: | 5-15 근무일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 10000sets/년 |
| 이름: | 목재 톱밥 수집 기계 | 유형: | 톱밥제거팬, 오거, 펄스수집기 |
|---|---|---|---|
| 힘: | 2.2kw ~ 7.5kw | 용법: | 산업용 먼지 추출 시스템 |
| 판매 후 서비스: | 영상 기술 지원 |
Wood Sawdust Collection Machine Industrial Dust Extractor System for Workshop / Factory (Cyclone & Bag Filter & Auger)
Product Overview

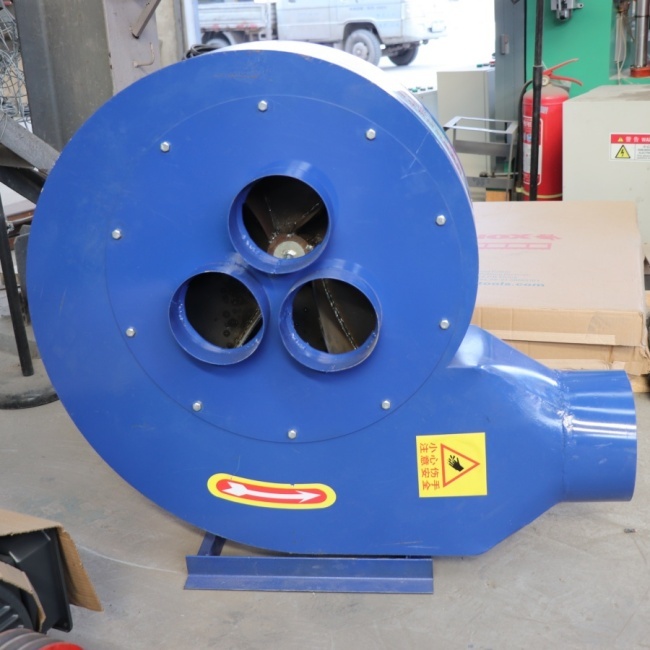

Our wood sawdust collection system is specifically designed for woodworking workshops, furniture factories, and processing plants. It efficiently removes sawdust, wood chips, and fine dust particles from the air, ensuring a clean and safe working environment. The system includes a centrifugal fan, bag filter, screw conveyor, and optional pulse jet cleaning.
Key Features
High Efficiency: Captures fine sawdust and large wood chips simultaneously.
Durable Construction: Made of heavy-duty steel for long-term industrial use.
Energy Saving: Optimized fan and motor design reduces power consumption.
Flexible Configuration: Available in 3kW and 7.5kW models to suit different workshop sizes.
Automatic Discharge: Optional screw conveyor (Auger) automatically removes collected dust.
Applications
Woodworking workshops
Furniture manufacturing
MDF/ Particleboard cutting lines
Sanding and planing machines

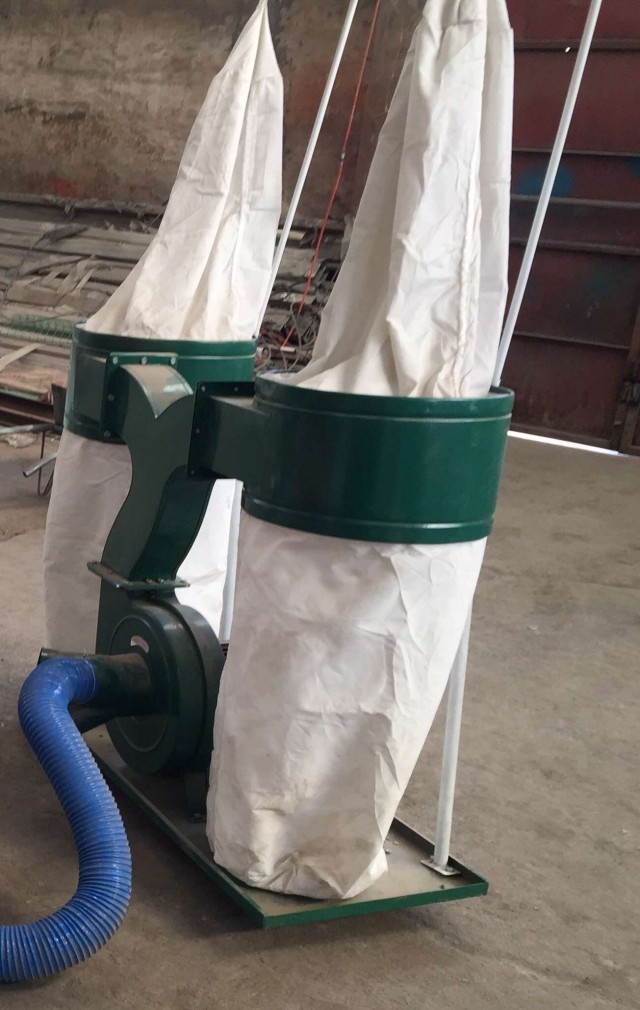

| Item | CH-3 / BD-3 | CH-7.5 / BD-7.5 |
|---|---|---|
| Power | 3 kW | 7.5 kW |
| Voltage | 380V / 3Phase (customizable) | 380V / 3Phase (customizable) |
| Airflow | Approx. 2000-3000 m³/h | Approx. 4500-6000 m³/h |
| Inlet Diameter | 100mm / 150mm | 150mm / 200mm |

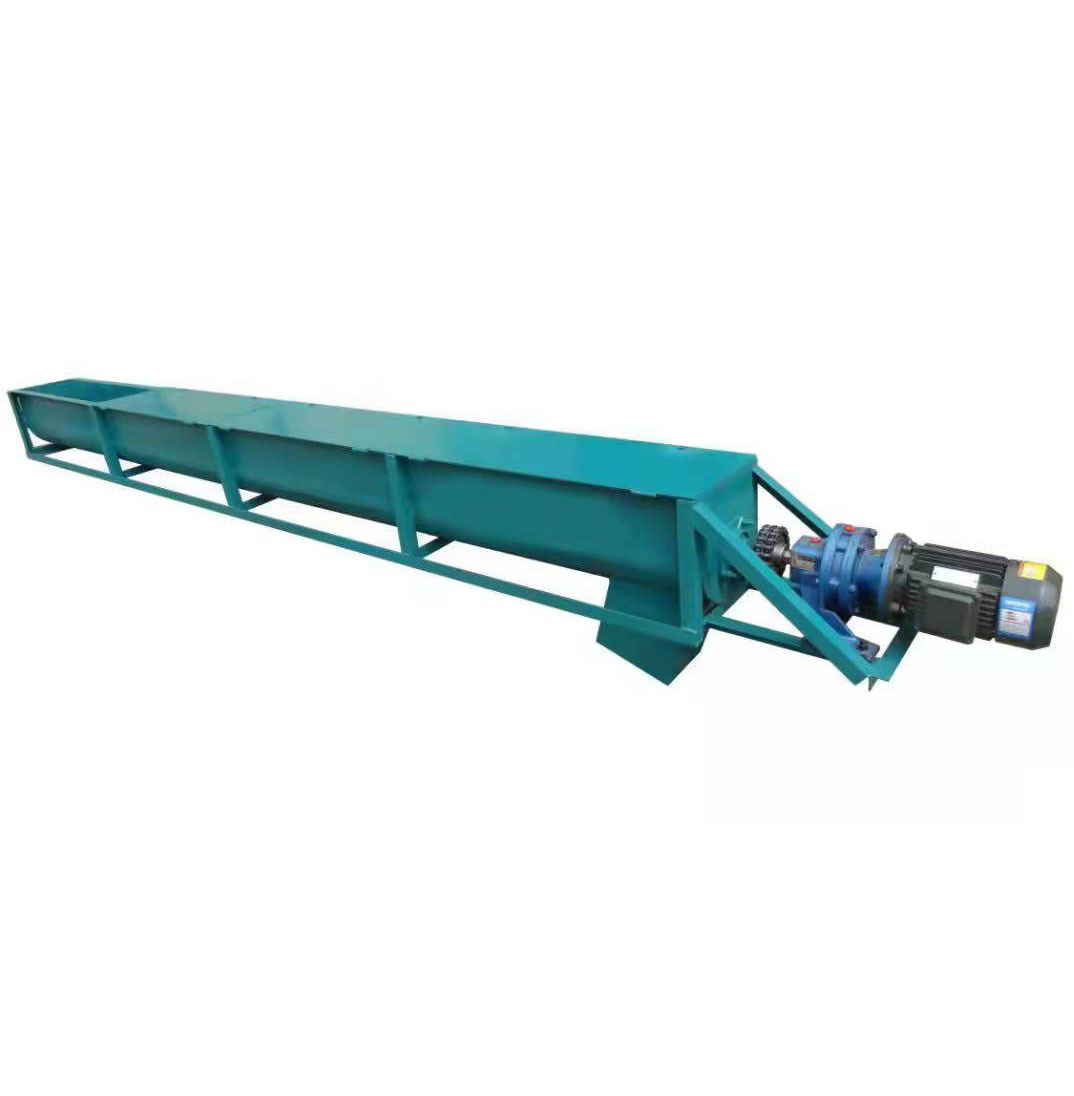

| Model | Length | Power | Tube Diameter |
|---|---|---|---|
| JL-4000 | 4000 mm | 2.2 kW | 219mm / 273mm |
| JL-6000 | 6000 mm | 2.2 kW | 219mm / 273mm |

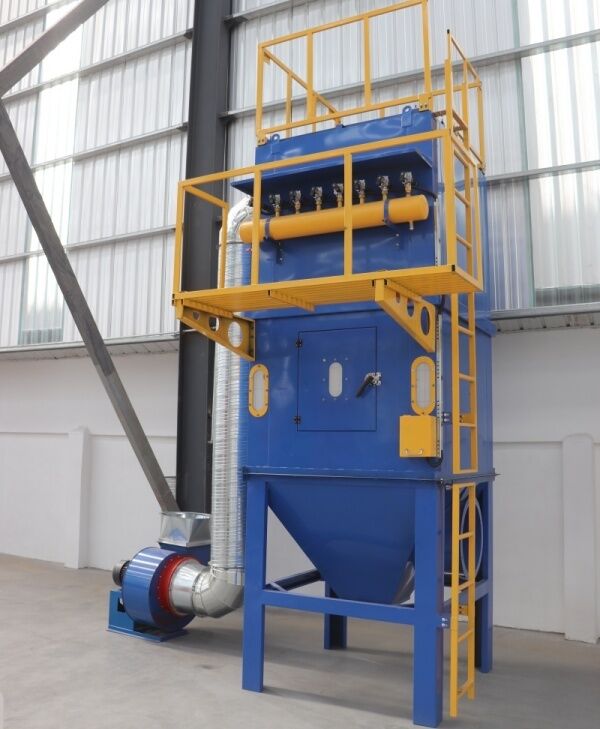

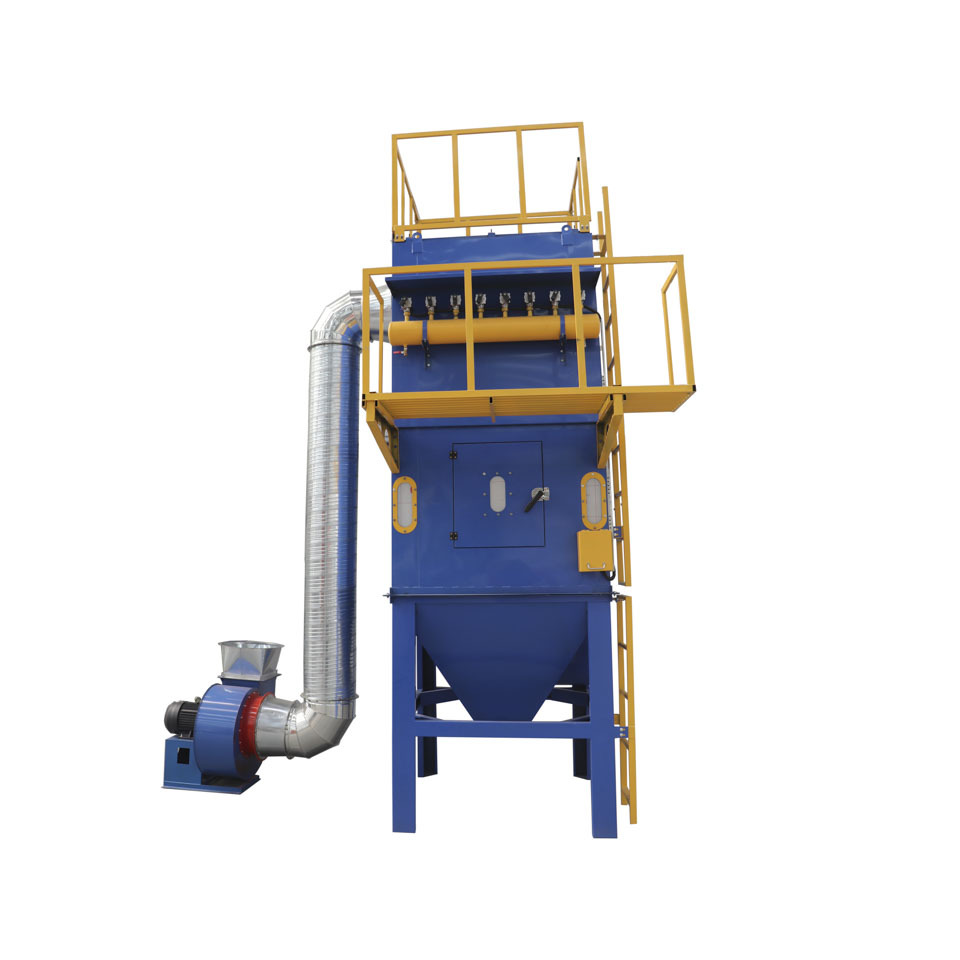

| Model | Filter Bags | Power | Cleaning Method |
|---|---|---|---|
| MC-48 | 48 bags | 5.5 kW | Automatic pulse jet |
| MC-64 | 64 bags | 7.5 kW | Automatic pulse jet |
