| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001 |
| 모델 번호: | ZDP600 |
| 최소 주문 수량: | 1세트 |
| 가격: | $15,800 - $18,000 / Sets |
| 포장 세부 사항: | 컨테이너 로딩 |
| 배달 시간: | 20일 이내 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 1000은 / 년에서 설정합니다 |
| 이름: | 더블 아버 헤비듀티 멀티 립쏘 | 원형톱의 직경: | 455mm |
|---|---|---|---|
| 맥스. 두께를 톱으로 켜기: | 300mm | 최대. 인피드 폭: | 600mm |
| 하단 아버의 모터 출력: | 75KW | 상단 아버의 모터 출력: | 55KW |
| 공급 롤러 수: | 상단 3개, 하단 6개 | 무게: | 4300kg |
| 핵심 단어: | 헤비 듀티 립쏘, 멀티 블레이드 톱질 기계 |

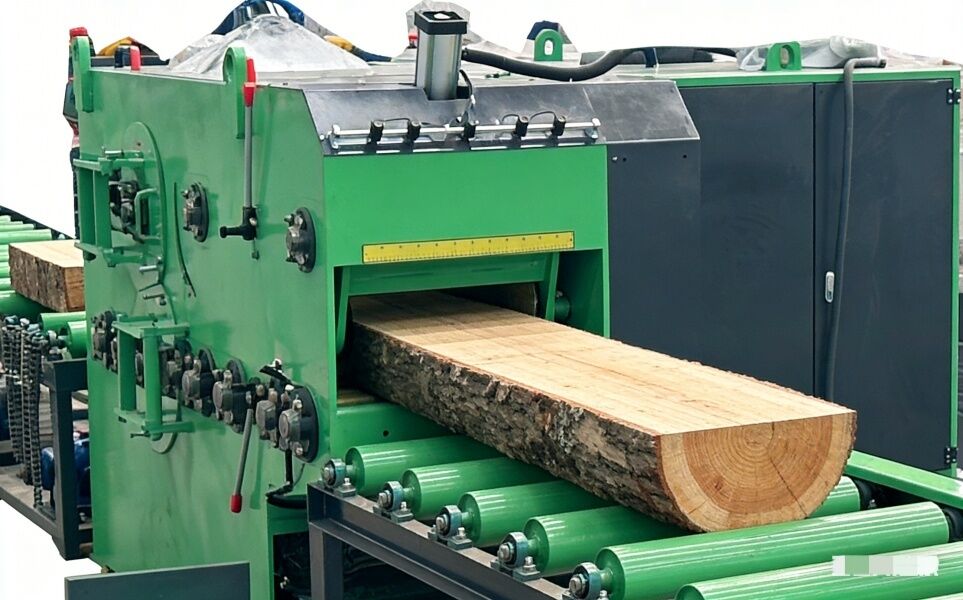

Our Double Arbor Heavy Duty Multi-Rip Saw is engineered for high-volume timber production where power and precision are paramount. Designed to handle large logs and thick slabs, this machine features a robust dual-arbor configuration (75KW bottom / 55KW top) to ensure clean, straight cuts through even the hardest timber. With a massive 300mm sawing thickness and a flexible frequency-adjustable feeding system, it is the ultimate workhorse for modern sawmills looking to maximize wood recovery and minimize labor costs.
| Model | ZDP600 |
| Max. infeed width | 600mm |
| Sawing height /thickness | 100-300mm |
| Main motor power, bottom arbor | 75KW |
| Main motor power, top arbor | 55KW |
| Diameter of circular saws | 455mm |
| Carbide circular blade up/down | 3sets (6pcs) with the machine |
| Feeding speed | Frequency speed adjustable |
| Number of feeding rollers | 3 pcs top ; 6pcs bottom |
| Weight | 4300kgs |
| Voltage | 380V / 50Hz / 3 phase |
Powerful Dual-Arbor Design: Equipped with a 75KW bottom motor and a 55KW top motor, providing the high torque needed for heavy-duty industrial cutting.
Massive Cutting Capacity: Handles an impressive sawing height of 100mm to 300mm, making it suitable for thick timber and large-scale wood processing.
Superior Feeding Stability: Features a precision system with 3 top and 6 bottom feeding rollers, ensuring smooth and consistent movement of heavy workpieces.
Precision Carbide Blades: Includes 3 sets (6 pieces) of 455mm high-grade carbide circular blades for long-lasting sharpness and reduced kerf waste.
Frequency Controlled Feed: Adjustable feeding speeds allow you to optimize throughput based on wood density and thickness.
Heavy-Duty Construction: At 4,300kg, the machine’s massive frame absorbs vibrations, guaranteeing stability and accuracy during continuous high-speed operation.
|
|
|
 |
|
