| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001, CE |
| 모델 번호: | YM500, YM430, YM400, YM330, YM150 등 |
| 문서: | multi blades rip saw.pdf |
| 최소 주문 수량: | 1세트 |
| 가격: | $15,800 - $180,000 / Sets |
| 포장 세부 사항: | 컨테이너 로딩 |
| 배달 시간: | 20~30일 이내 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 1000은 / 년에서 설정합니다 |
| 이름: | 고효율 통나무 멀티 립쏘 생산 라인 | 절단 용량: | 120m³/8h 용량 |
|---|---|---|---|
| 키워드: | 통나무 다날톱, 산업용 제재소 라인, 멀티립 톱 기계 | 작업: | 오토매틱 |
| 블레이드 직경을 톱으로 켜세요: | 255~650mm | 처리 로그 최대. 지름: | 500mm |
| 피드 속도: | 10~50m/분 | 급송: | 오토매틱 |
| 애플리케이션 나무: | 활엽수 통나무와 연한나무 |

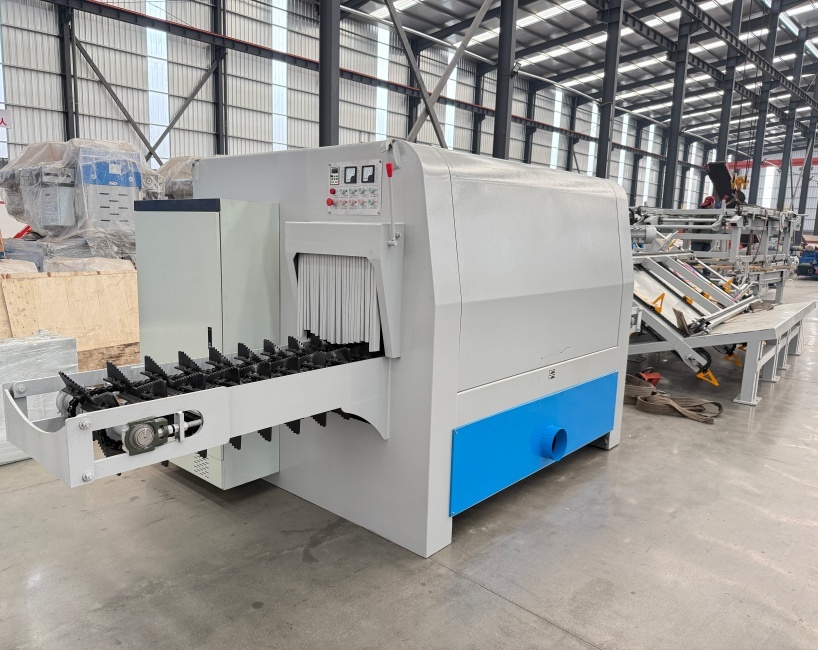

Maximize your sawmill’s ROI with our heavy-duty log multi-blade saw production line. Engineered specifically for large-scale timber processing, this system handles logs with diameters ranging from 250mm to 500mm and lengths up to 6000mm.
With a robust industrial design, this line delivers a massive production capacity of 80–120 m³ per 8-hour shift, making it the ideal solution for high-volume lumber manufacturers seeking to reduce labor costs and increase precision.
| Feature | Capability |
| Log Diameter Range | 250mm – 500mm |
| Maximum Log Length | 6000mm |
| Daily Output (8 Hours) | 80m³ – 120m³ |
| Blade Configuration | Multi-saw blade system for precision cutting |
| Application | Softwood & Hardwood processing, Pallet production, Construction timber |
| Model | SHYM500 |
| Sawing Log Diameter | 250-500mm |
| Min Sawing Log Length | 1000mm |
| Spindle speed | 2800r/min |
| Main Motor Power | 75kw,75kw |
| Feeding Motor | 3kw |
| Saw Blade Quantity | 2-10pcs |
| Saw Blade Diameter | 650mm |
| Discharge Electric-powered Side Pressure Roller | 2pcs |
Woodworking Machinery for Large Logs

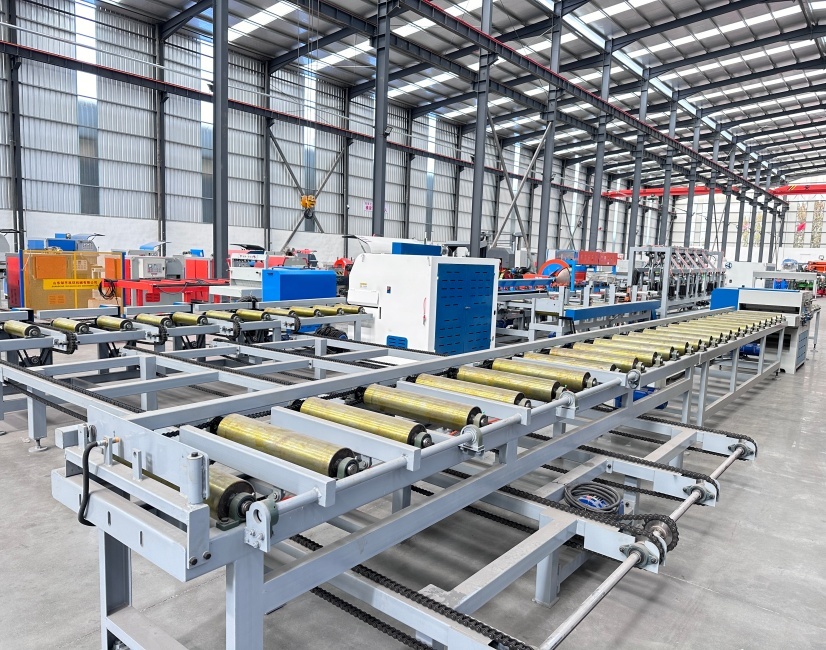

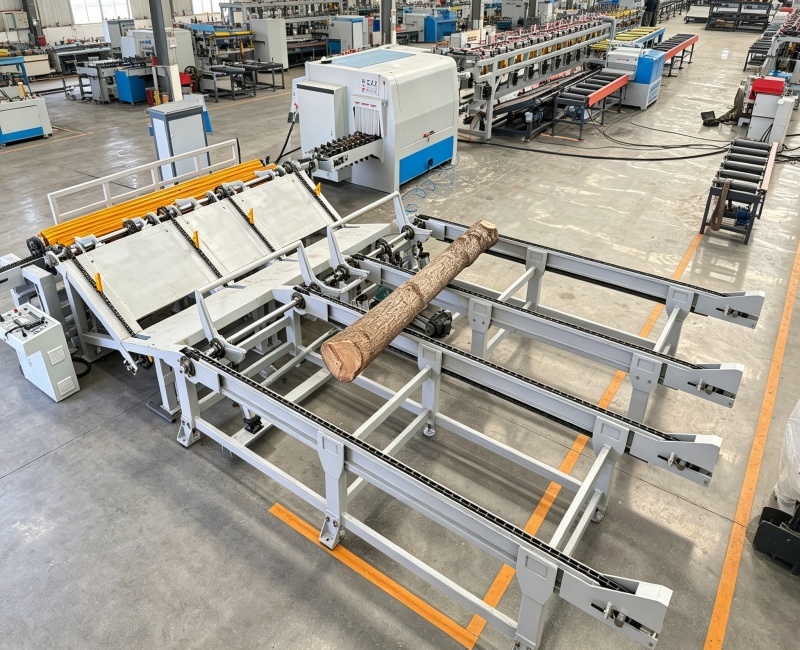

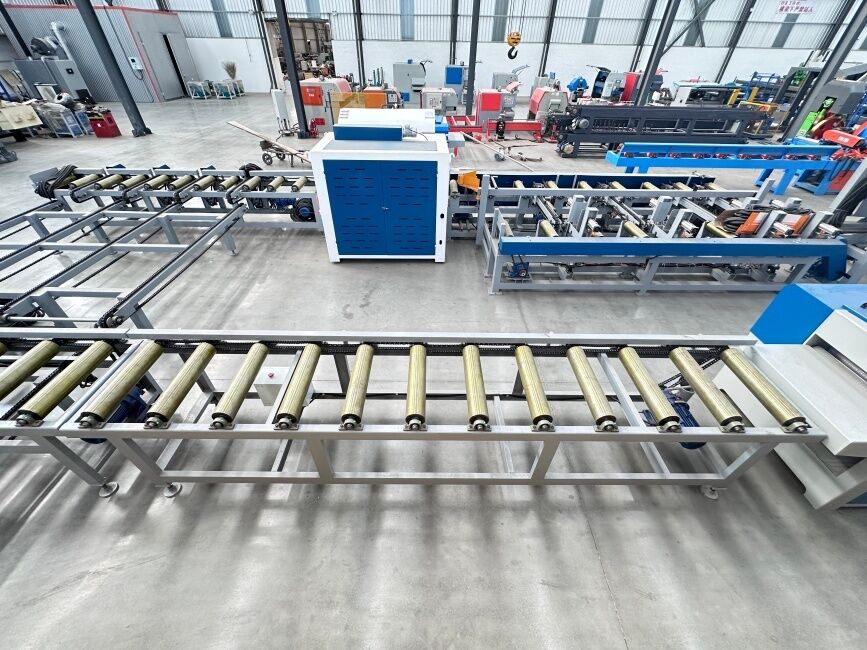

Automatic Log Sawing Production Line
Log Multi-Rip Saw Price
High Yield Wood Sawing System
Industrial Log Breakdown Line
Timber Primary Processing Equipment
Q1: What is the maximum log size this machine can handle?
A: It processes logs up to 500mm in diameter and 6000mm in length.
Q2: What is the maximum log diameter and length this production line can process?
A: This heavy-duty production line is specifically designed for large-scale timber. It efficiently processes logs with a diameter max. 500mm and a maximum length of up to 6000mm or as customer needs, making it ideal for construction-grade lumber and large pallet materials.
Q3: Can this multi-saw blade line handle both hardwood and softwood?
A: Yes. The system is equipped with high-torque motors and specialized alloy saw blades that can be adjusted for different wood densities. Whether you are processing softwood (pine, spruce) or dense hardwood, the machine ensures a smooth finish and high dimensional accuracy.
A: Due to its industrial capacity, the line typically requires a 380V/50Hz (or customized) three-phase power supply. Regarding space, since it handles 6000mm logs, we recommend a factory layout that allows for seamless in-feed and out-feed. Contact our technical team for a detailed floor plan layout.
