| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001, CE |
| 모델 번호: | AEPN-1300, SHDL-1300, PQ1300-4 등 |
| 문서: | wood pallet nailing machine...ne.pdf |
| 최소 주문 수량: | 1 세트 목제 팔레트 네일링 머신 |
| 가격: | US $4,800 - 21,500 / Set |
| 포장 세부 사항: | 철재 프레임 포장 또는 루오 포장 |
| 배달 시간: | 15일 이내 |
| 지불 조건: | T/T 또는 L/C 현장, 웨스턴 유니온 |
| 공급 능력: | 1000은 / 년에서 설정합니다 |
| 이름: | 목재 팔레트 못 매기 기계 | 용량: | 50-80팔레트 /시간 |
|---|---|---|---|
| 목제 팔레트 길이: | 700-1300mm | 목제 팔레트 폭: | 800-1300mm |
| 작업 모드: | 자동인 채 피딩되고 쌓입니다 | 코일 네일 건의 수: | 3 PC 또는 4 PC |
| 공기의 압력: | 0.8Mpa | 애프터 서비스: | 비디오 기술 지원, 무료 원격 지능형 감지 |
| 보장하다: | 1년 | 기계 그림: | 녹슬지 않도록 플라스틱 스프레이 |

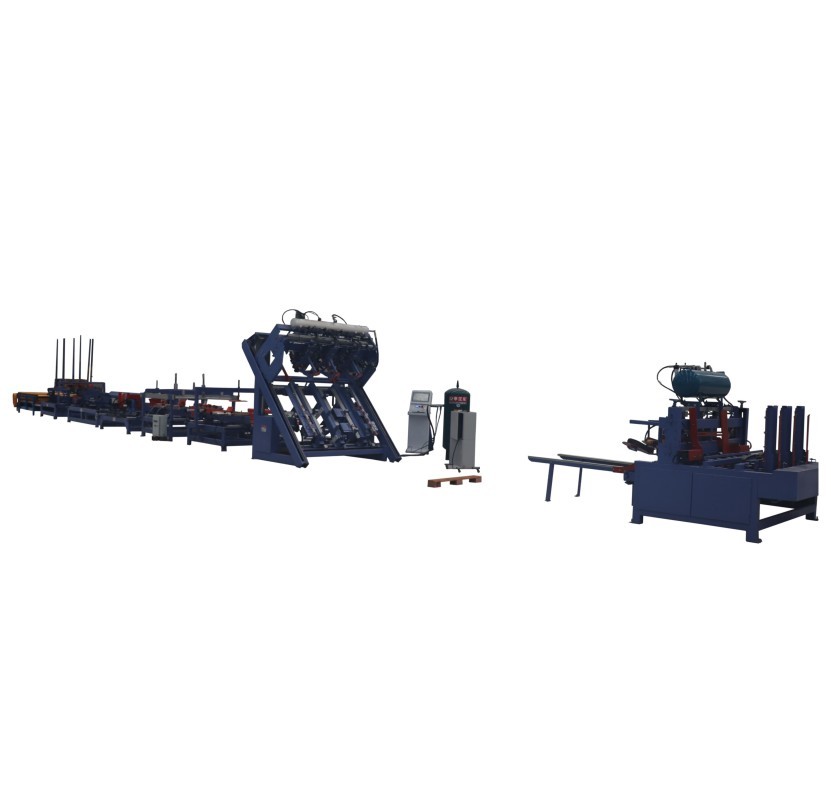

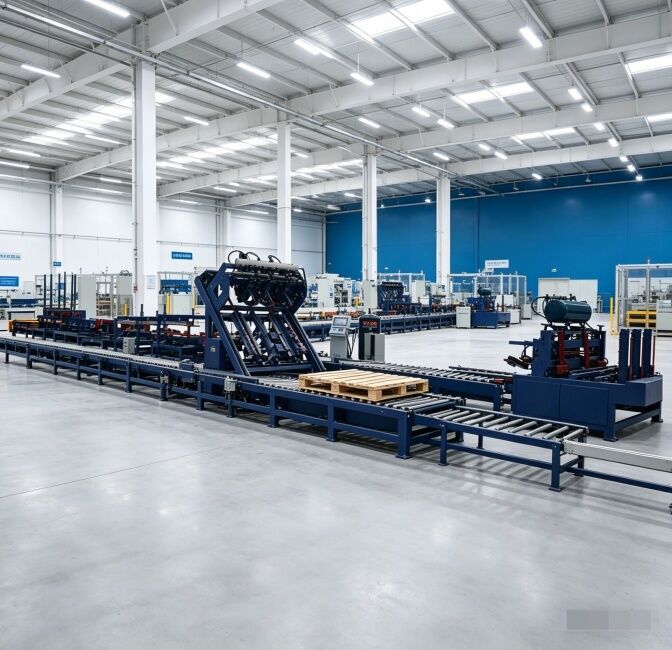

Maximize your facility's throughput with our Automatic EPAL Wood Pallet Production Line. Capable of producing 50-80 pallets per hour, this fully integrated system handles pallet sizes from 700mm to 1300mm. Features advanced block nailing, automated branding, and precision chamfering to meet strict European standards.
Our production line is an all-in-one solution designed for high-volume manufacturing of standard EPAL and custom wooden pallets.
Automatic Pallet Block Nailing Machine: High-precision placement and fastening of support blocks.
Automatic Pallet Nailing Machine: Industrial-grade nailing for top and bottom decks.
Pallet Rotary & Turning Machines: 180° and 90° flipping for dual-sided processing.
Pallet Branding Machine: Automatic heat stamping of EPAL/EUR logos and IPPC markings.
Pallet Corner Cutting & Chamfer Machine: Precision trimming for safety and easy handling.
Pallet Palletizer & Conveyor System: Automated stacking and transport to minimize manual labor.
Production Capacity: 50 - 80 pallets / hour.
Pallet Length: 700mm – 1300mm.
Pallet Width: 800mm – 1300mm.

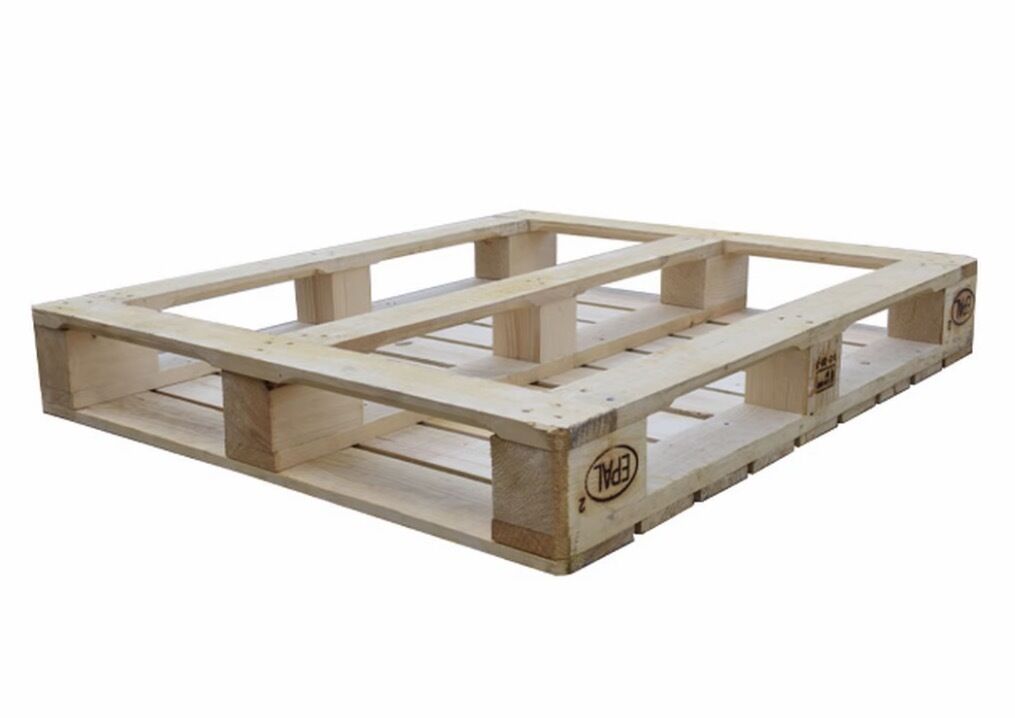

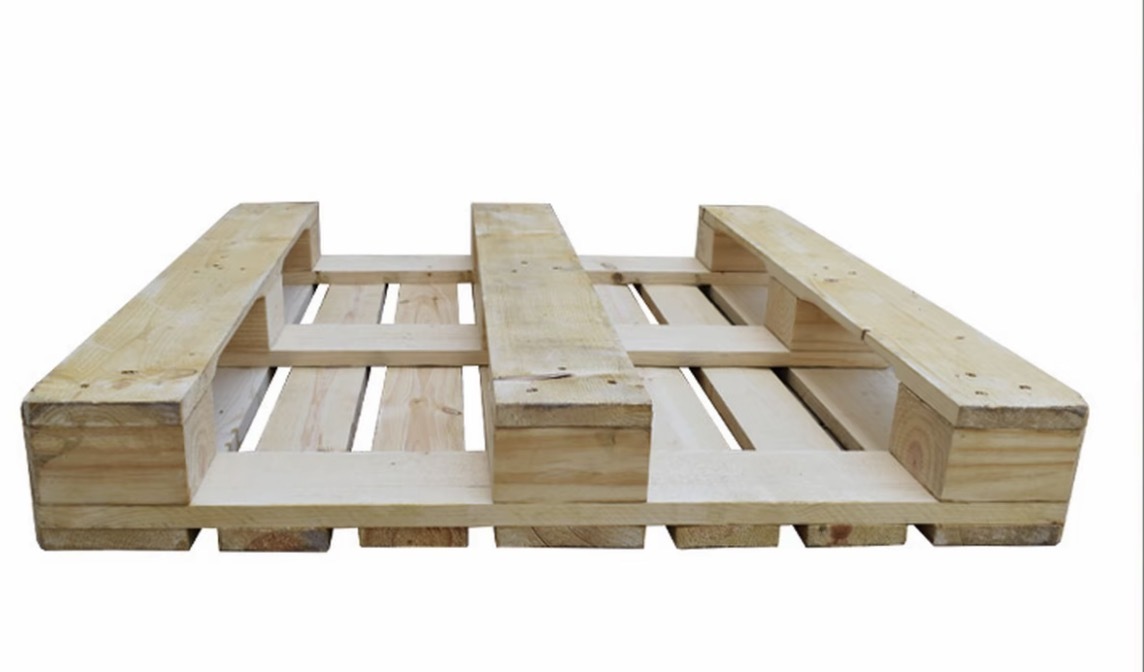

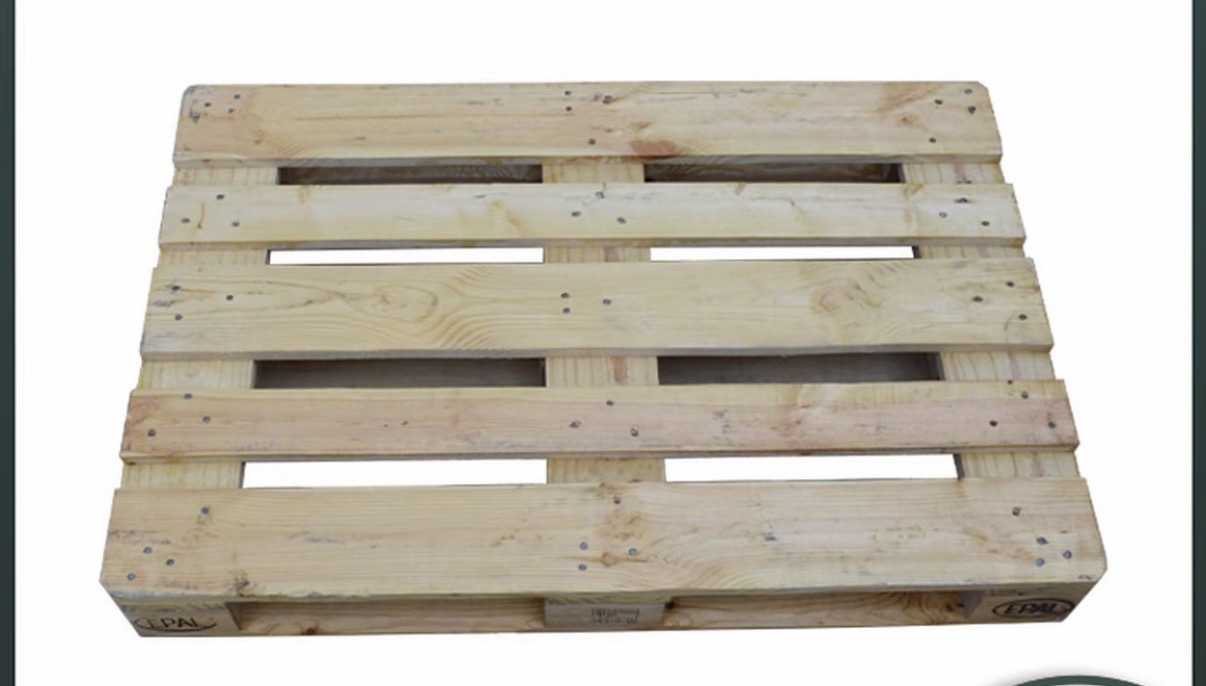

Compliance: Designed for EPAL European Standard production.
1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |

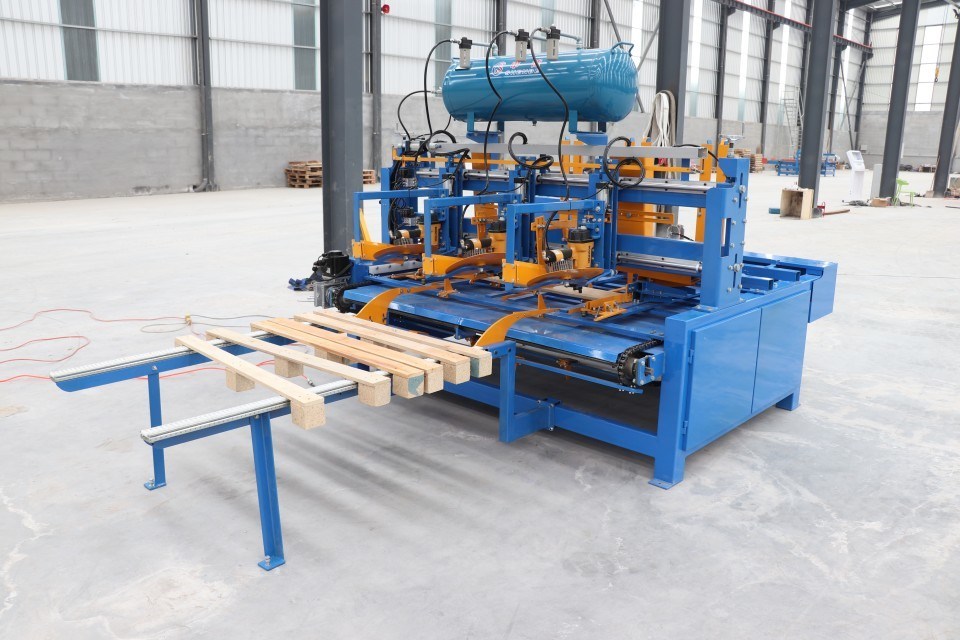

2,Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
| Model | PQ1300-4 |
| Processing size | 800-1300mm |
| Circular saw blade diameter | 300mm |
| Motor power | 2.2KW*4 |
| Working mode | Automatic feed,Automatic Angle cutting |
| Weight | 350kg |
5. Wooden pallet palletizer
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |
Labor Reduction: Fully automated cycle from raw wood to stacked pallets requires minimal operators.
Versatility: Adjustable settings to switch between different pallet sizes (700-1300mm).
Consistent Quality: Machine-driven nailing and branding ensure every pallet meets export regulations.
Durable Engineering: Heavy-duty components designed for 24/7 industrial operation.
