| 원래 장소: | 중국 산동성 |
|---|---|
| 브랜드 이름: | SH |
| 인증: | ISO9001,CE |
| 모델 번호: | SLDJ-1300-3 등 |
| 문서: | wood pallet nailing machine...ne.pdf |
| 최소 주문 수량: | 1 나무 팔레트 부두 자동 연결 네일링 머신을 설정합니다 |
| 가격: | US $7,800 - 12,400 / Set |
| 포장 세부 사항: | 수출 포장 또는 필름 포장 컨테이너 로딩 |
| 배달 시간: | 20일 이내 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 1000SETS/년의 목재 팔레트 부두 자동 연결 네일링 머신의 해 |
| 이름: | 유로 팔레트 블록 못 박는 기계 | 용량: | 600p/h |
|---|---|---|---|
| 전력(w): | 1.5kW 서보 모터 | 블록 너비: | 60-150mm |
| 보드 길이: | 600-1300mm 또는 고객 요구로 | 네일 총: | Stanley Bostitch Stitch Gun70mm*3 |
| 못을 박는 방법: | 1 개의 손톱, 2nail, 3nails, 4nail, 5nail | 보증: | 기계 수령 후 12개월 |
| 필요한 노동: | 1 연산자 | 판매 후 서비스 제공: | 시운전 및 교육, 비디오 기술 지원 |

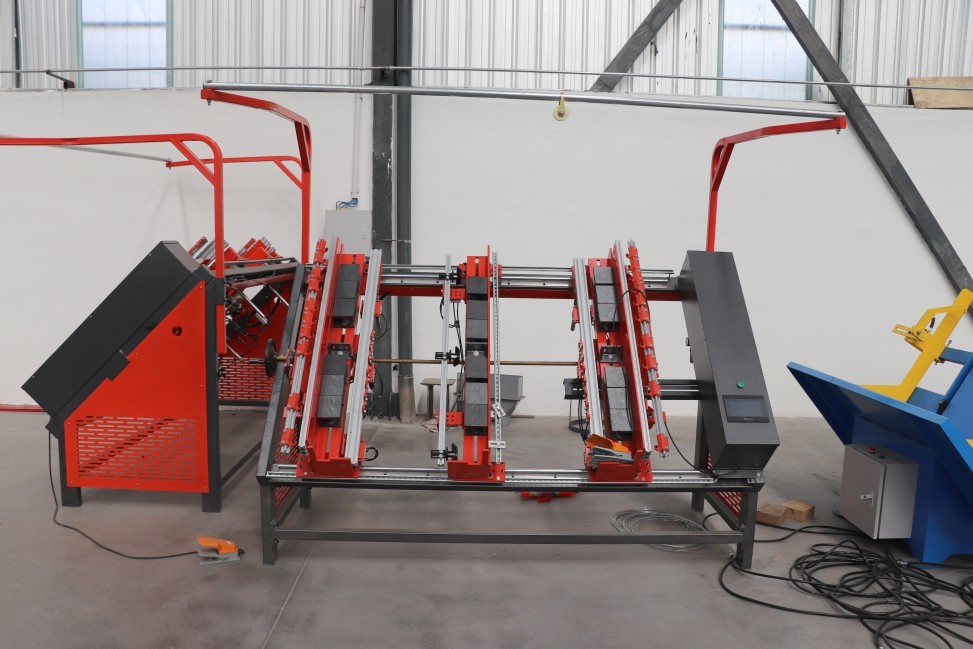

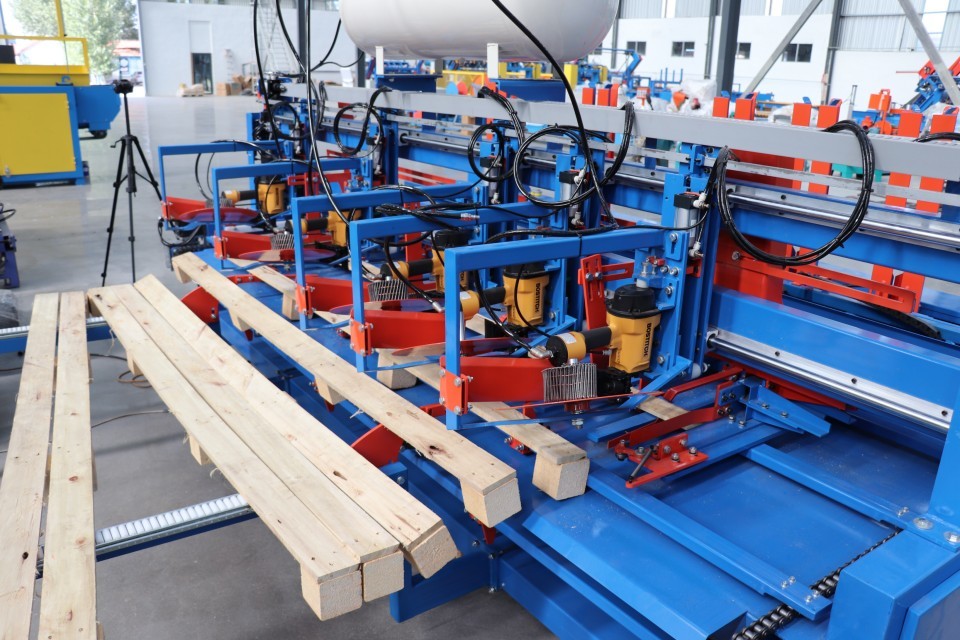

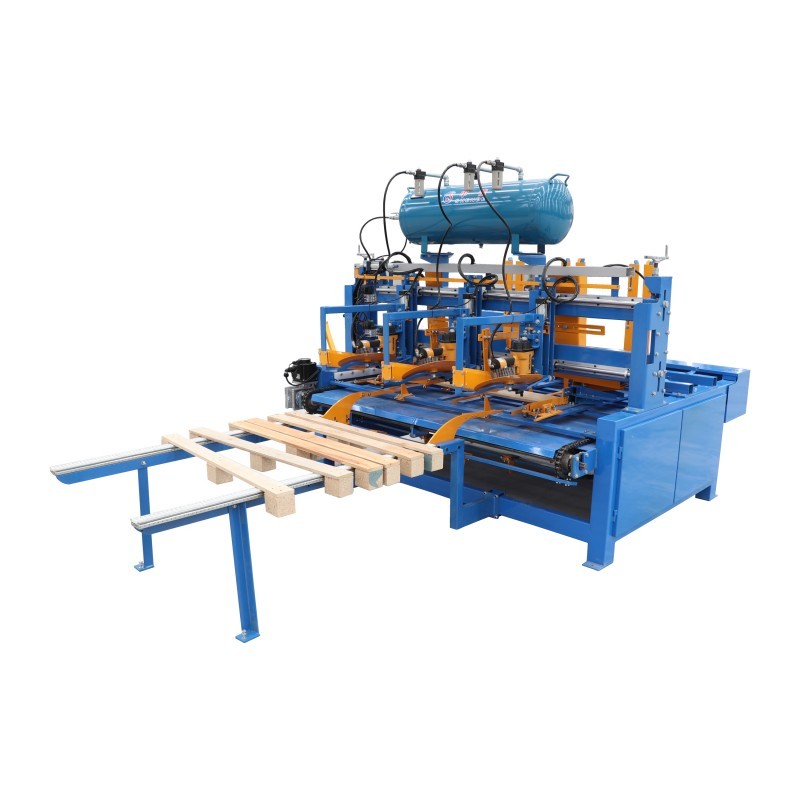

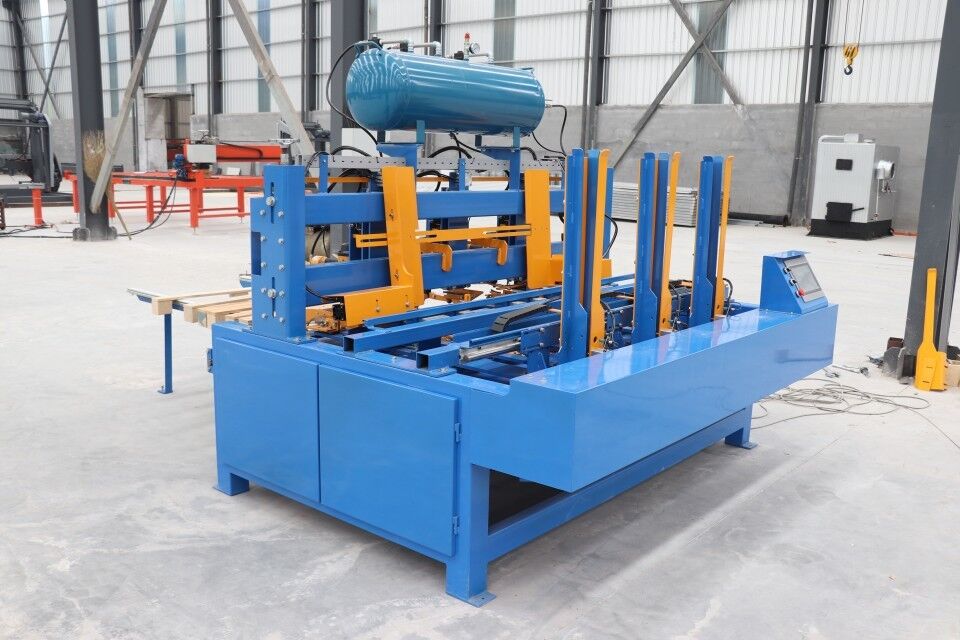

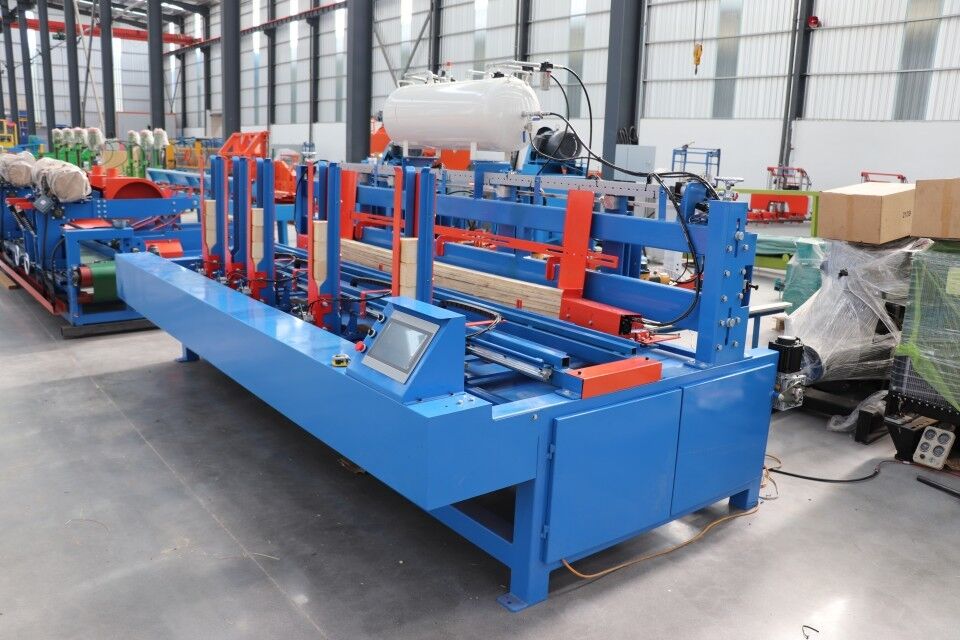

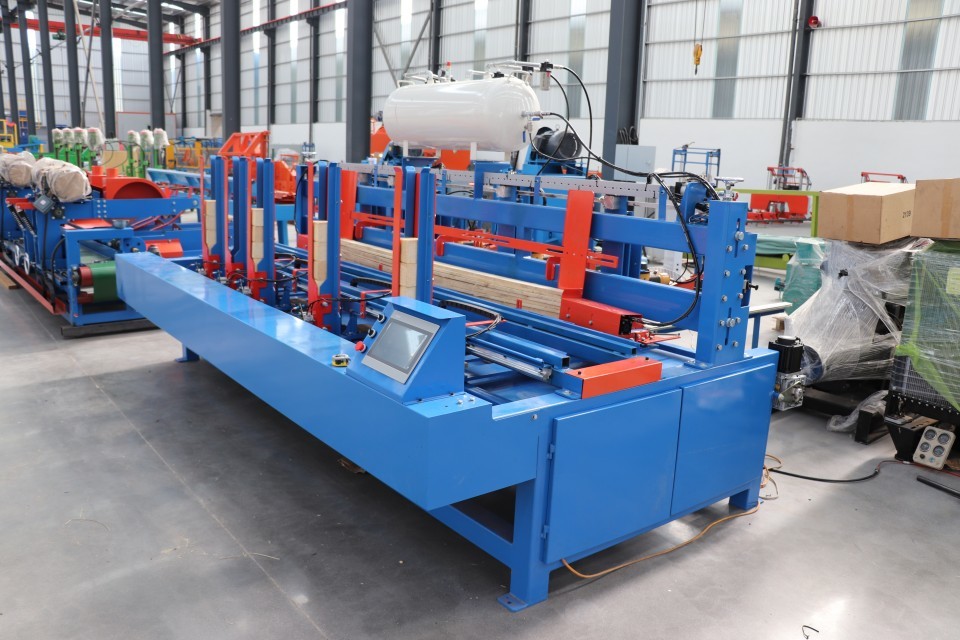

Automatic Euro Pallet Block Nailing Machine
– High-Efficiency Automated Pallet Production
Our Automatic Euro Pallet Block Nailing Machine is a heavy-duty, high-performance industrial solution designed for the automated assembly of Euro pallet blocks and stringers. It streamlines the traditional, labor-intensive nailing process, ensuring maximum safety, uniform quality, and high-speed output.
Advanced PLC Control System: User-friendly touch screen interface allows for quick adjustment of nail spacing, block dimensions, and production speed.
High Compatibility: Perfectly handles standard Euro pallet blocks (145mm x 145mm, 145mm x 100mm, etc.) with precise positioning.
Pneumatic / Hydraulic Nailing System: Delivers strong, consistent driving force, ensuring nails are perfectly flush or countersunk according to your requirements.
Automatic Pallet Nailing Machine & Stacking (Optional): Can be customized with automatic pallet nailing machine and pallet stackers to minimize manual handling.
Durable & Robust Design: Built with high-grade industrial steel to withstand continuous, high-intensity factory environments.
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | Stanley BOSTITCH Stitch gun70mm*3 |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.1KW Servomotor |
| Capacity | 600P/H |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
| Machine size | 2500*1800*2100mm |
Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.
Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.
Reduces production time and costs while maintaining consistent, high-quality output.
Related Hot Selling Machines
| Model | PB200 |
| Working mode | Automatic feeding ,automatic nailing and cutting |
| Operating mode | Touch screen control |
| Operational mode | Pneumatic operation |
| Motor power | 7.5KW,2.2KW*2,1KW |
| Raw material length | 1000-3000mm |
| Block Length | 40-200mm |
| Cutting height | 40-120mm |
| Cutting width | 40-100mm |
| Cutting blade | 350-400mm |
| Number of planer | 2 |
| Nail quantity | 1-3 pcs (adjustable) |
| Working Efficiency | 5-6m3/day |
| Voltage | 380V/3 Phase |
| Weight | 1200Kg |
| Dimension | 5400*1400*1600mm |
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
